Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: option
  • Insulation Material: Rubber
  • Type: Medium Voltage
  • Application: Industrial
  • Conductor Material: Copper
  • Jacket: Rubber
  • conductor: tinned copper
  • insulation: silicone
  • Voltage rated: 600V
  • current rated: 88A
  • Colors: red black blue green yellow
  • Wire type: strand
  • Wire guage: 12AWG
  • Wire strand: 680/0.08
  • Over diameter: 4.5MM
  • certificate: RoHs UL

Packaging & Delivery

Packaging Details: 1)packing : 200 meters silicone wire / waterproof bag
2)according customize packing
Delivery Detail: 5-7 working days delivery on time / silicone wire



                      12AWG Silicone Wire Factory


Specifications

 Conductor tinned copper
 Insulation Silicone
 Certificate RoHs UL
 AWG 12#
 MQO 100/meters







Product Description



 Voltage rating600V
 Current rating88A
 Contact resistance<20Ω per KFT
 Break down voltage>20KV AC
 Insulation rating>100MΩ
 Temperature range-60 - +200 degree celsius



 Application
 High temperature equipmentcontrol panel connection
 Instrumenttesting
 Equimentconnection
 Automotivewire harness

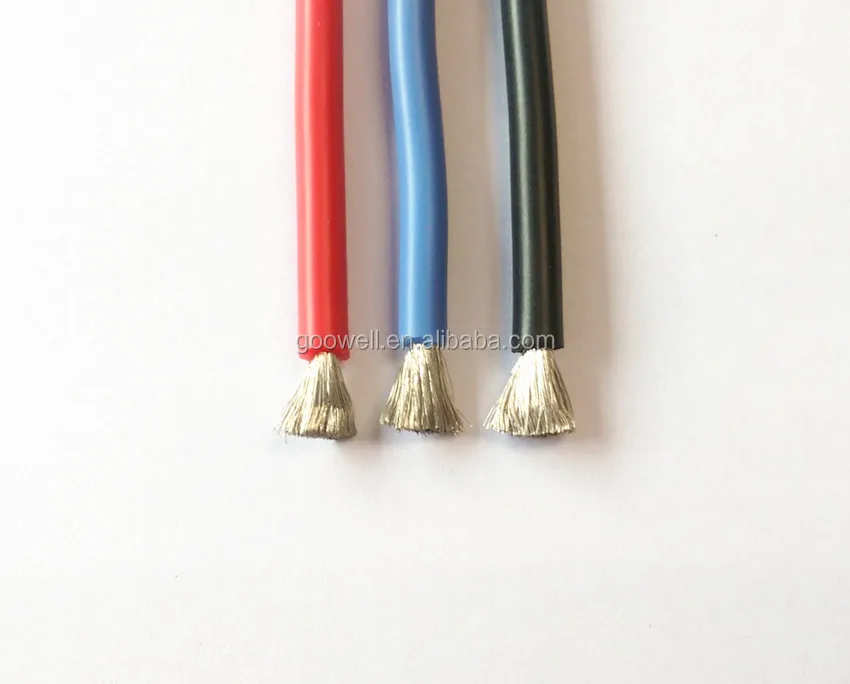

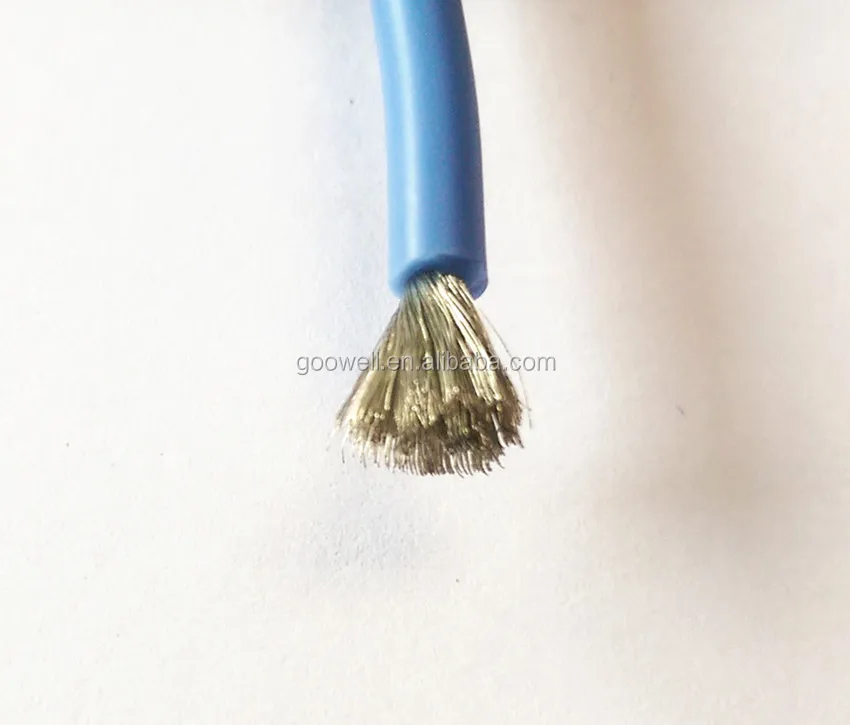

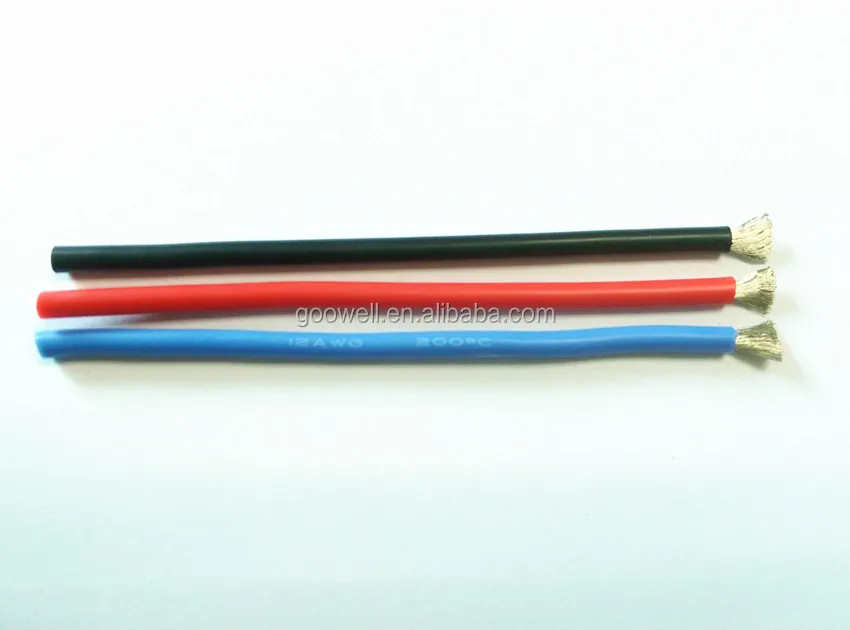

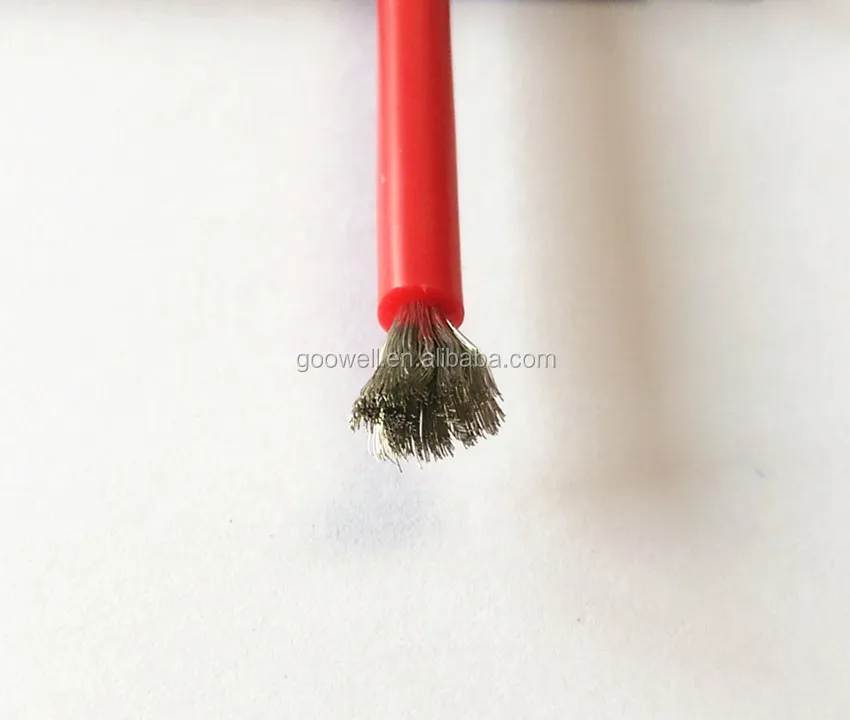

Proctcs Picture

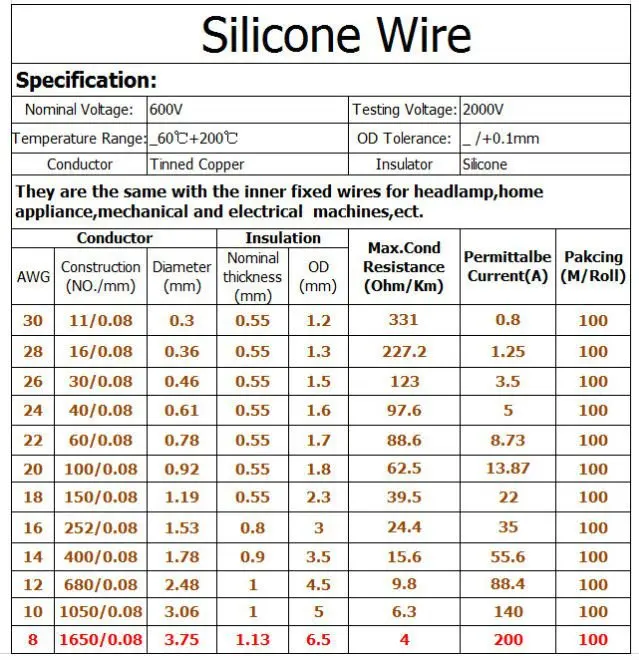

 Patameters
